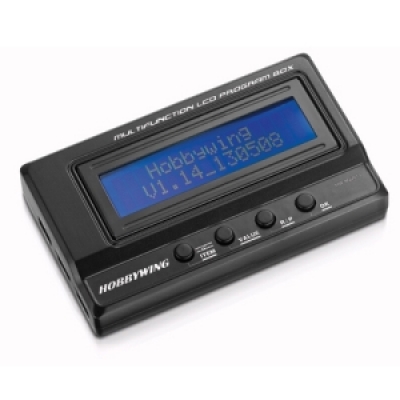

Multifunction LCD Program Box(Xerun,EZrun 시리즈 차ESC,Xerun-120A V3&3.1 ECS,PLATINUM 시리즈 에사용) 30502000
1. Setting or Updating the following ESC:
a) XERUN and EZRUN series Car ESC (Version 2.0 or later)
b) XERUN-120A V3 & V3.1 ESC
c) PLATINUM series helicopter/aircraft ESC
d) PLATINUM V3 series helicopter/aircraft ESC
2. Works as a Lipo battery voltmeter.
1 Working Modes
1.1 Works as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
1.2 Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC or set the ESC by HOBBYWING USB LINK SOFTWARE .
1.3 Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or each cell.
2 Specifications
2.1 Size: 90mm (L) * 51mm (W) * 17mm (H)
2.2 Weight: 65g
2.3 Input Voltage: 4.5-12.6V
(If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program box)
2.4 Displayer: 16*2 characters LCD.
2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug) 3 Compared with the "2 in 1 Professional LCD Program Box"
Models of LCD program boxes: 2 in 1 Professional LCD program box (Already stopped) Multifunction LCD program box: It is a new priduct uses MCU (microprocessor) with larger memory, it has a new function to work as Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.
Firmware for the LCD program boxes:- 2 in 1 Professional LCD program box:
It has 2 types of firmware
a) Type A: The firmware with postfix “_V3” (eg. V1.11_120331_V3) is only suitable for XERUN-120A-SD V3 and V3.1 ESC
b) Type B: Firmware without postfix “_V3” (eg. V1.08_120504) is suitable for the ESC below except the XERUN-120A-SD V3 or V3.1 ESC. i. XERUN series V2.0 and V2.1 car ESCs; ii. EZRUN series V2.0 car ESCs; iii. Platinum series aircraft/helicopter ESCs. iiii. Platinum V3 series aircraft/helicopter ESCs. Please select the correct firmware for the 2 in 1 professional LCD program box according to the type of the ESC. The factory-preset firmware is Type B, but it can be upgraded to Type A and downgraded to Type B by user himself. - Multifunction LCD program box:
Because of its larger memery size, a single firmware can be compatible with all speed controllers, including XERUN series V2.0/2.1/3.0/3.1, EZRUN V2.0, Platinum series and Platinum V3 series.
This Multifunction LCD Program Box is suitable for the following ESC:
XERUN & EZRUN series Car ESC (Version 2.0 and 2.1)
XERUN-120A V3 & V3.1 ESC
PLATINUM series helicopter/aircraft ESC
PLATINUM V3 series helicopter/aircraft ESC
A) The programmable items for the XERUN and EZRUN series car ESC:
1 Running Mode
2 Drag Brake Force
3 Low Voltage Cut-Off Threshold
4 Start Mode
5 Maximum Brake Force
6 Maximum Reverse Force
7 Initial Brake Force
8 Throttle Neutral Range
9 Timing
10 Over-Heat Protection
11 Motor Rotation
12 Lipo Cells Amount
*Note: Some speed controllers have less programmable items, but some have more. Please read the user manual of your speed controller to get detail information.
B) The programmable items for the PLATINUM series airplane ESC:
1 Brake
2 Battery Type
3 Low Voltage Protection Mode (Cutoff Mode)
4 Low Voltage Protection Threshold (Cutoff Threshold)
5 Start Mode
6 Timing
7 Governor Mode
8 Reserved Item #1
9 PWM Frequency
10 Built-In BEC Output
11 Reserved Item #2
12 Lipo Cells Amount
C) The programmable items for the PLATINUM V3 series airplane ESC:
1 Brake
2 Battery Type
3 Low Voltage Protection Mode (Cutoff Mode)
4 Low Voltage Protection Threshold (Cutoff Threshold)
5 Flight Mode
6 Autorotation Restart Time
7 Timing
8 PWM Frequency
9 Built-In BEC Output
10 Lipo Cells Amount A PDF reader is needed to open the user manual. Please click the icon to download it.
